FINISH GRINDER

High Performance & Accuracy

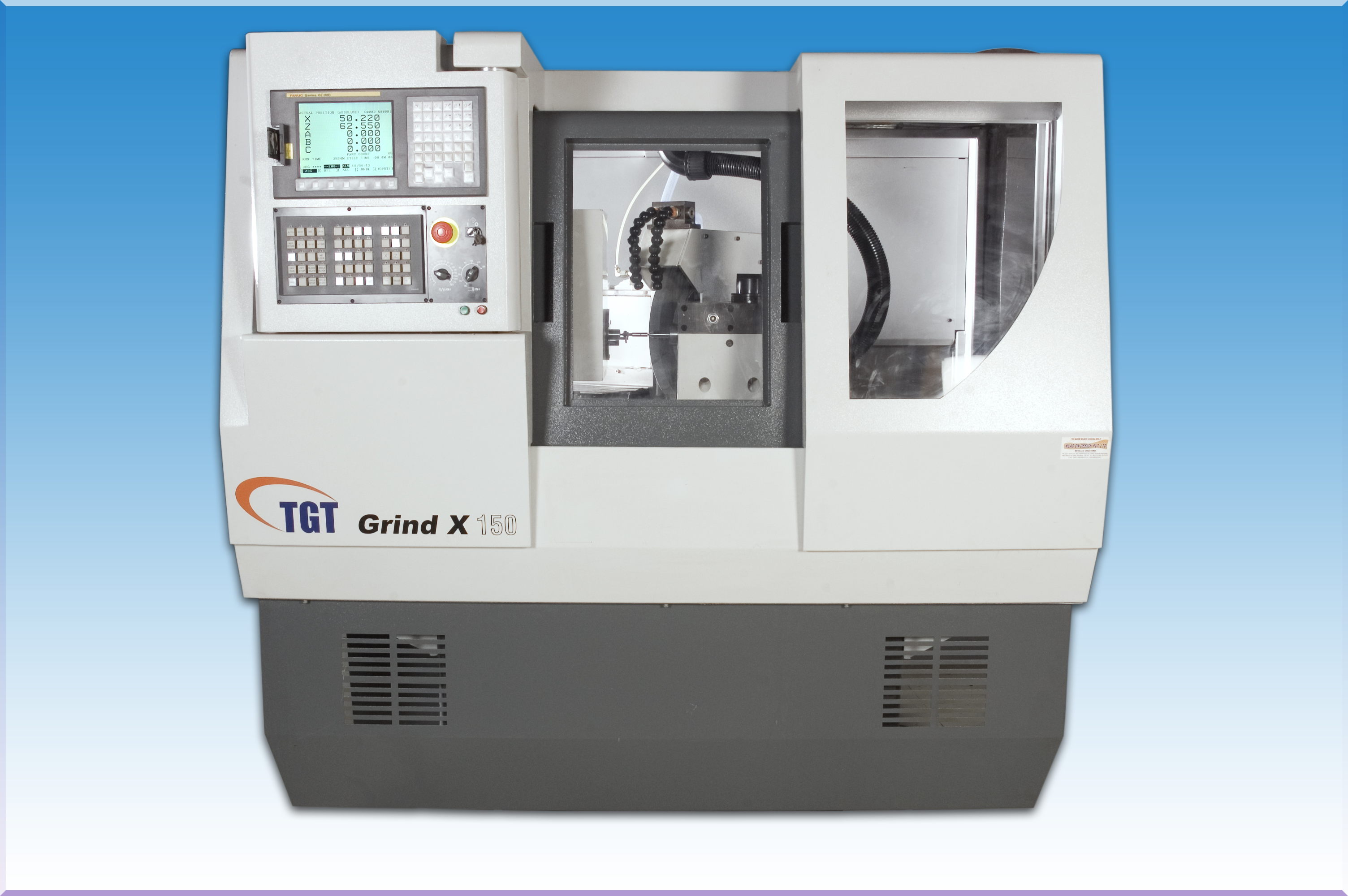

FINISH GRINDER

    Finish Grinder is designed for the grinding of workpieces in series production operations. It is therefore ideally suited for use in the automobile industry and all sectors where small cylindrical precision components are produced in large series under economical conditions.

    KNOW MORE..


Machine Base

Machine base is made out of cast iron of suitable grade. They are doubly stress relived while machining. The machine base is so designed that it will have least thermal expansion due to machining coolant temperature variations. This is achieved by suitably designing the machine base along with the machine guard to enable the coolant collecting directly on to the machine guard.

Cross and Longitudinal Slides

The cross and longitudinal slides are made from high-quality grey cast iron and have high-precision guides with optimum guide intervals for the overall rigidity of the machine. The longitudinal slide rests on V and flat guide ways over the entire travel range. Users benefit from the excellent straightness of the generating line .The cross slide glides on a preloaded cross roller guide way. This guarantees wear-free and stick-slip-free motion plus high po¬sitioning precision.

Wheel Head

The wheel head with a position of 30 deg to the work spindle axis for external cylindrical grinding with the grinding wheel on the right is mounted on the cross slide. The wheel head is equipped with hydrodynamic bearings from a reputed German manufacturer is of suitable size, lubricated with a pressurized lubricating oil. The closed loop lubricating system ensures highest precision over long period.

Work Head

The work head is suitable for dead center grinding of the components. The work head spindle has roller bearings, requires minimal maintenance and displays a good roundness. It is driven by a infinitely variable induction motor.

Tail Stock

The generously dimensioned barrel, designed for the use of Morse 2 taper centers, glides in the rigid tailstock housing. The fine adjustment makes the finest possible taper correction in the range below 1 µm possible when grinding between centers.

Gauging

In-process gauging with Movomatic/Marposs gauging system. Gauges mounted on hydraulic slide for precision measurement and control of the dimension.

Dressing

Single point dresser is mounted near the tailstock on the longitudinal guide way on a separate mount. The 2 axes are programmed to interpolate to generate various profiles on the grinding wheel.

Machine Layout

The machine is having a compact footprint of following dimensions: Width 1400 mm X Depth 3000 mm X Height 2000 mm.

Specifications

WorkPiece Specification

Center height 150 mm
Max work piece length 150 mm
Max work piece diameter 80 mm
Max work piece weight 6 Kg
