V2 ADVANCED MAXIMA LINEAR

High Performance & Accuracy

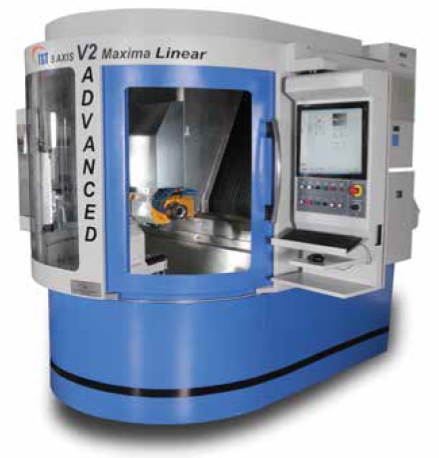

V2 ADVANCED Maxima Linear

  • V2 ADVANCED Maxima Linear is a 5 axes machine configured with Tubular type Linear Motors for X & Z Axes. The machine comes with linear glass scales with 0.0001 mm resolution.
  • Direct Drive Torque Motor for tool swiveling axis A and C which delivers high level of absolute accuracy with zero backlash.

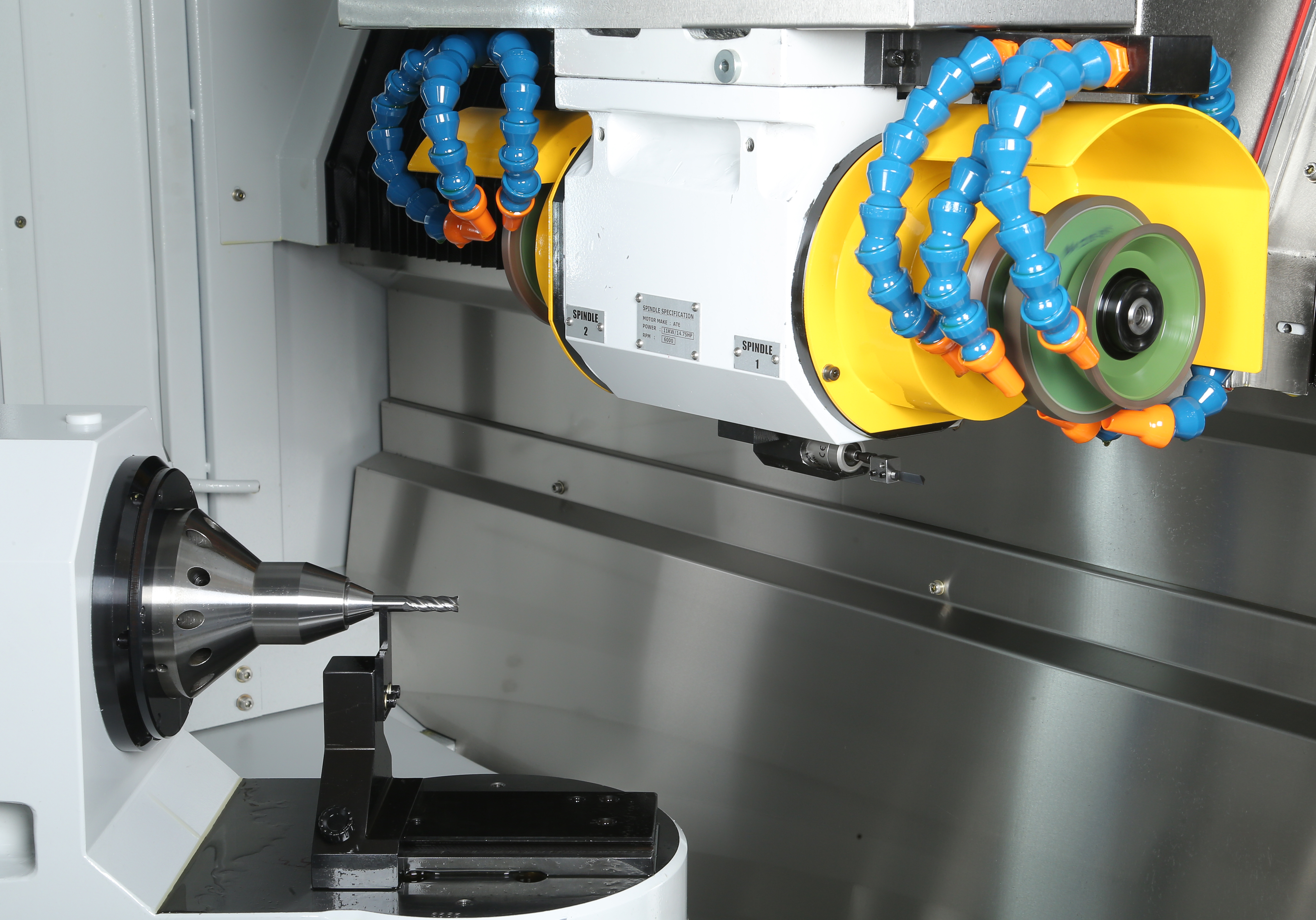

  • Twin spindle high precision tools grinding machine .This machine is optimized for grinding diameter range from 2mm to 20mm solid carbide tools.

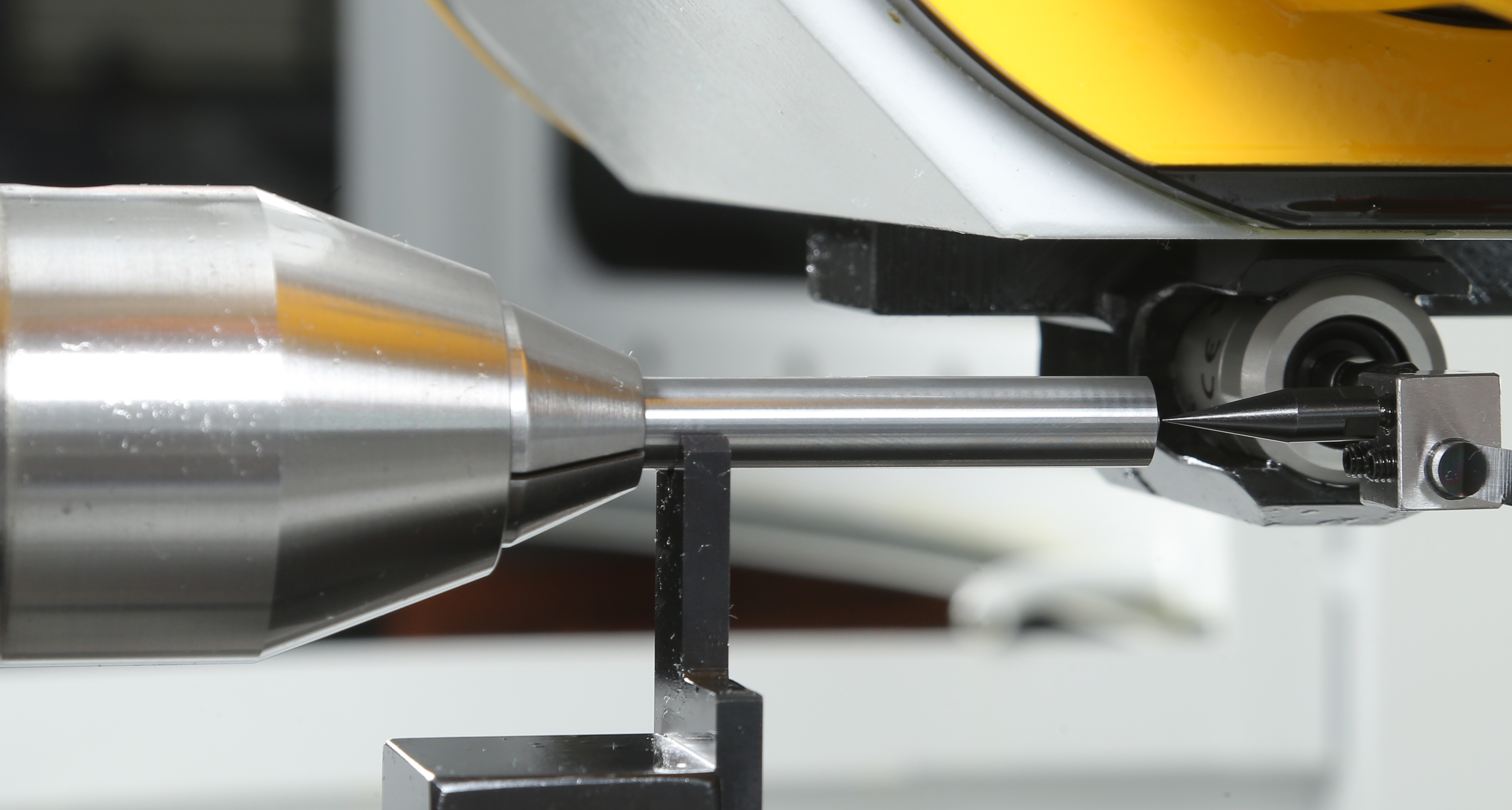

  • GDS Clamping system with Very high concentricity and repeatability, runout under 0.002 mm at 2½ x D. Suitable for both high production and regrinding.
  • All 3 linear Axes X, Y, Z are satellite type elevated and isolated from Coolant Area.

KNOW MORE!




  • DHEE0239

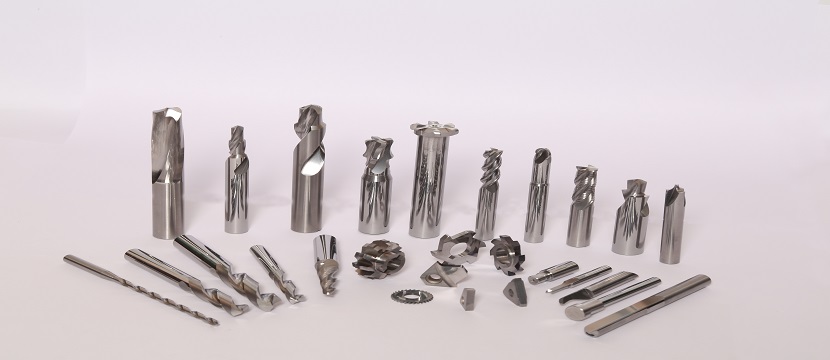

  • DHEE0090

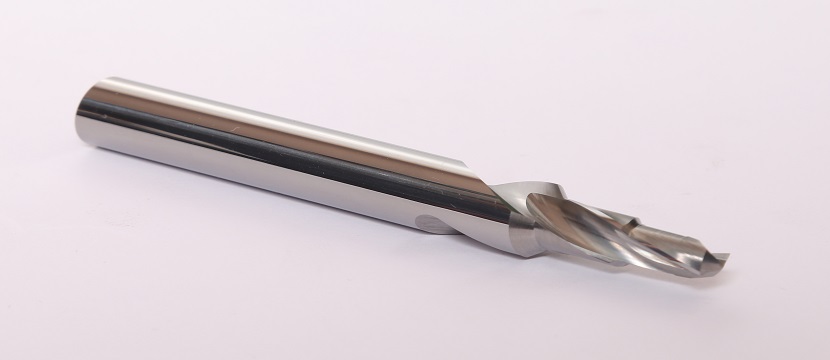

  • DHEE0179
  • wowslider

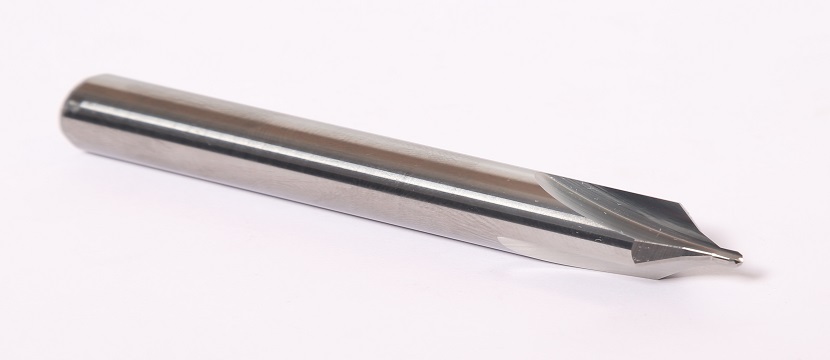

  • DHEE0234

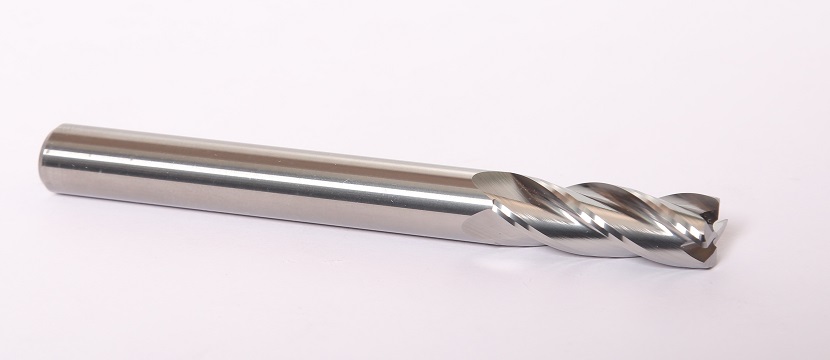

DHEE02391 DHEE00902 DHEE01793 DHEE02314 DHEE02345



FEATURES

  • MTS SCREEN
  • 3D SIMULATION
  • PROFILE SIMULATION
  •

VIDEO

V2 ADVANCED MAXIMA LINEAR 1
