EASYDRESS

High Performance & Accuracy

EASY DRESS

  • EASY DRESS is a Wheel dressing Machine with the following features.
  • Base made of Cast Iron for better vibration dampening and rigidity.
  • Fitted with imported linear bearings (LM Guides) for free movement and high precision
  • Ball screws for all slides for precise positioning.
  • Operating electrical Panel is mounted directly on the machine at a convenient place of operation.
  • Fixed position orientation pin for 90 degree and cup wheel dressing for quick setup.
  • Frequency drive for dressing wheel to control the RPM.
  • Angle and straight wheels can be easly dressed
  • Compactin design and footprint
  • Setup time is quick.
  • Dresser and Grinding wheels rpm can be adjusted with drive.
  • Oscillation speed can be controlled.
  • Low in maintenance.

KNOW MORE..






B.Dressing Wheel
1 B.Dressing WheelDressing Wheel max @150*25WX31.75 mm
2 B.Dressing WheelDressing Wheel spindle taper TGT Standard
3 B.Dressing WheelDressing wheel speed 1800 rpm
4 B.Dressing WheelDressing wheel motor 0.75kW
5 B.Dressing WheelDressing wheel oscillating frequency 30-60 strokes/min
6 B.Dressing WheelDressing wheeloscillating stroke 50 mm stroke
7 B.Dressing WheelDressing wheel cross stroke 90 mm
8 B.Dressing WheelDressing wheelcross Traverse 80mm
Note: This machine B.Dressing Wheelcan dressed only straight and angle wheels, form / Radius cannot be dressed


FEATURES

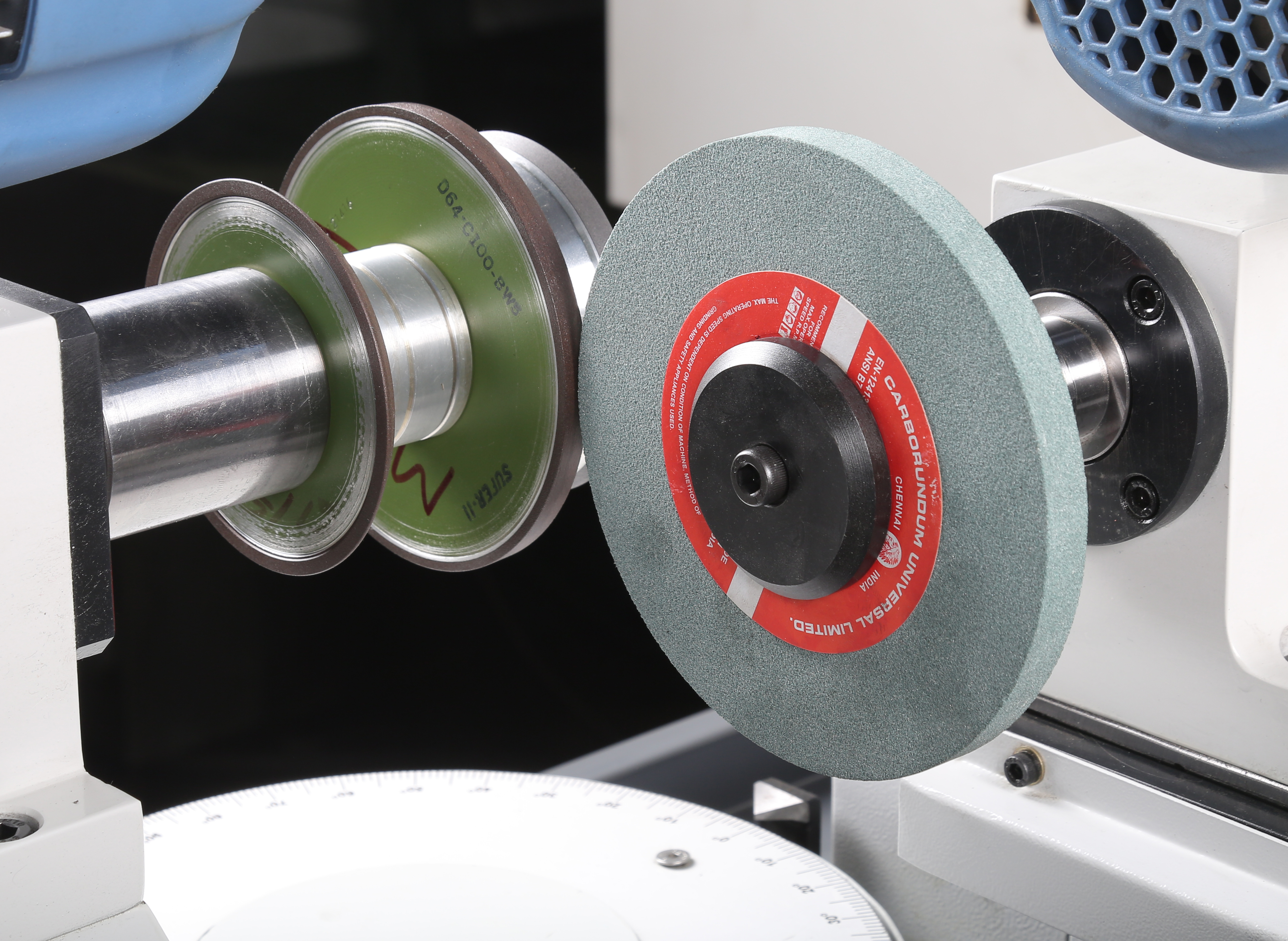

  • EASYDRESS 1

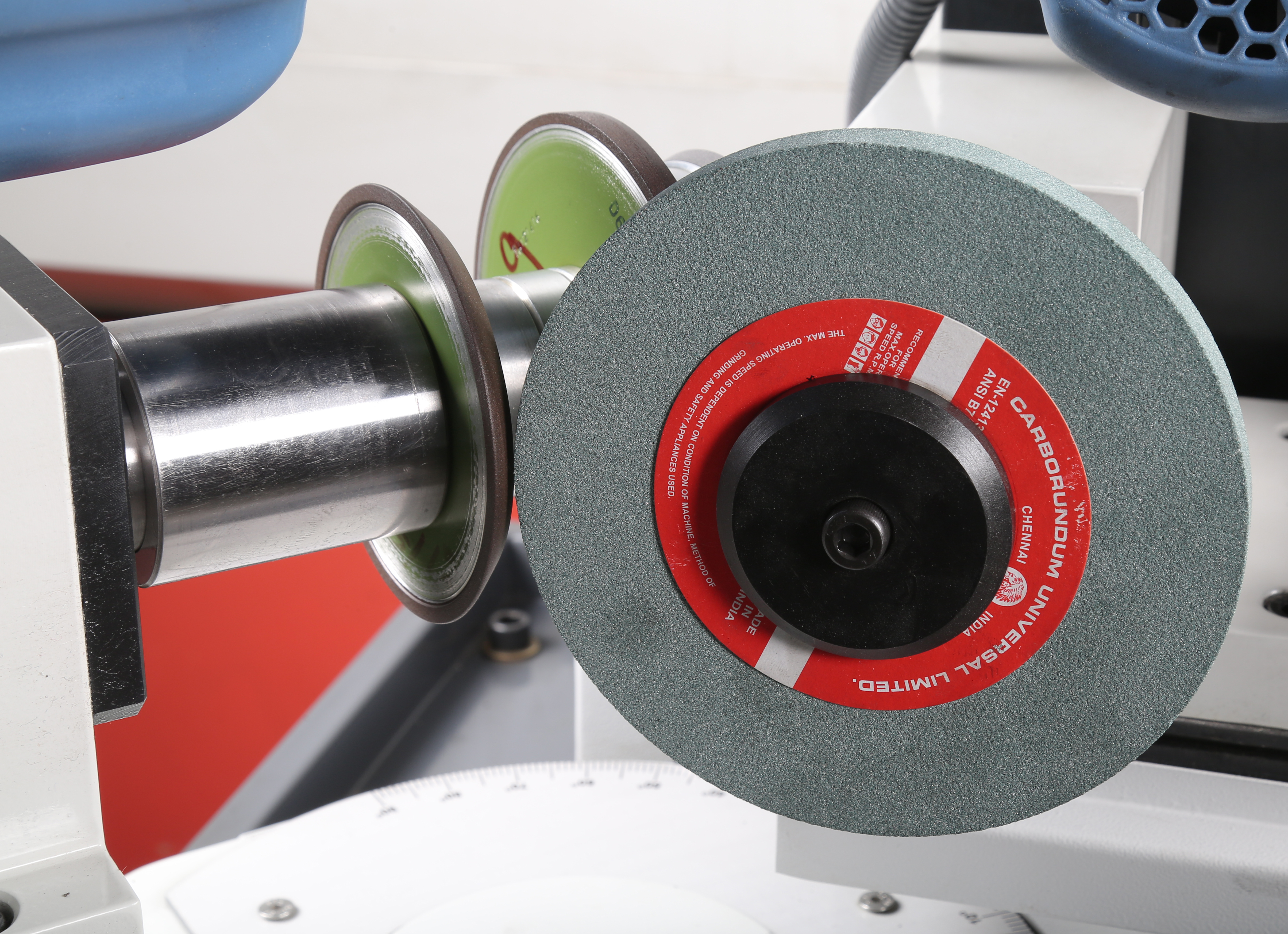

  • EASYDRESS 2

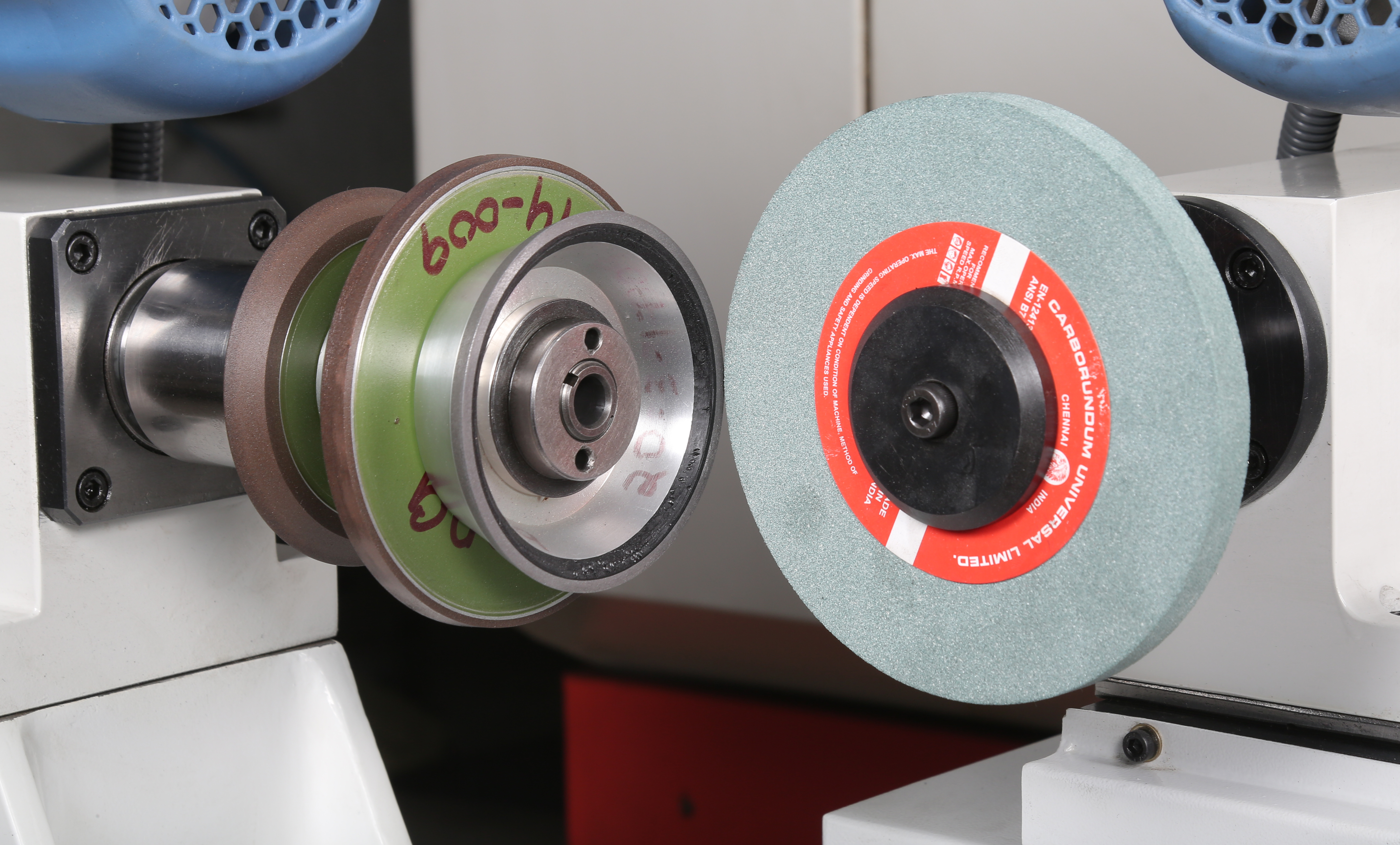

  • EASYDRESS 3
  •

VIDEO




VIDEO 2




VIDEO 3
