ACCUDRESS

High Performance & Accuracy

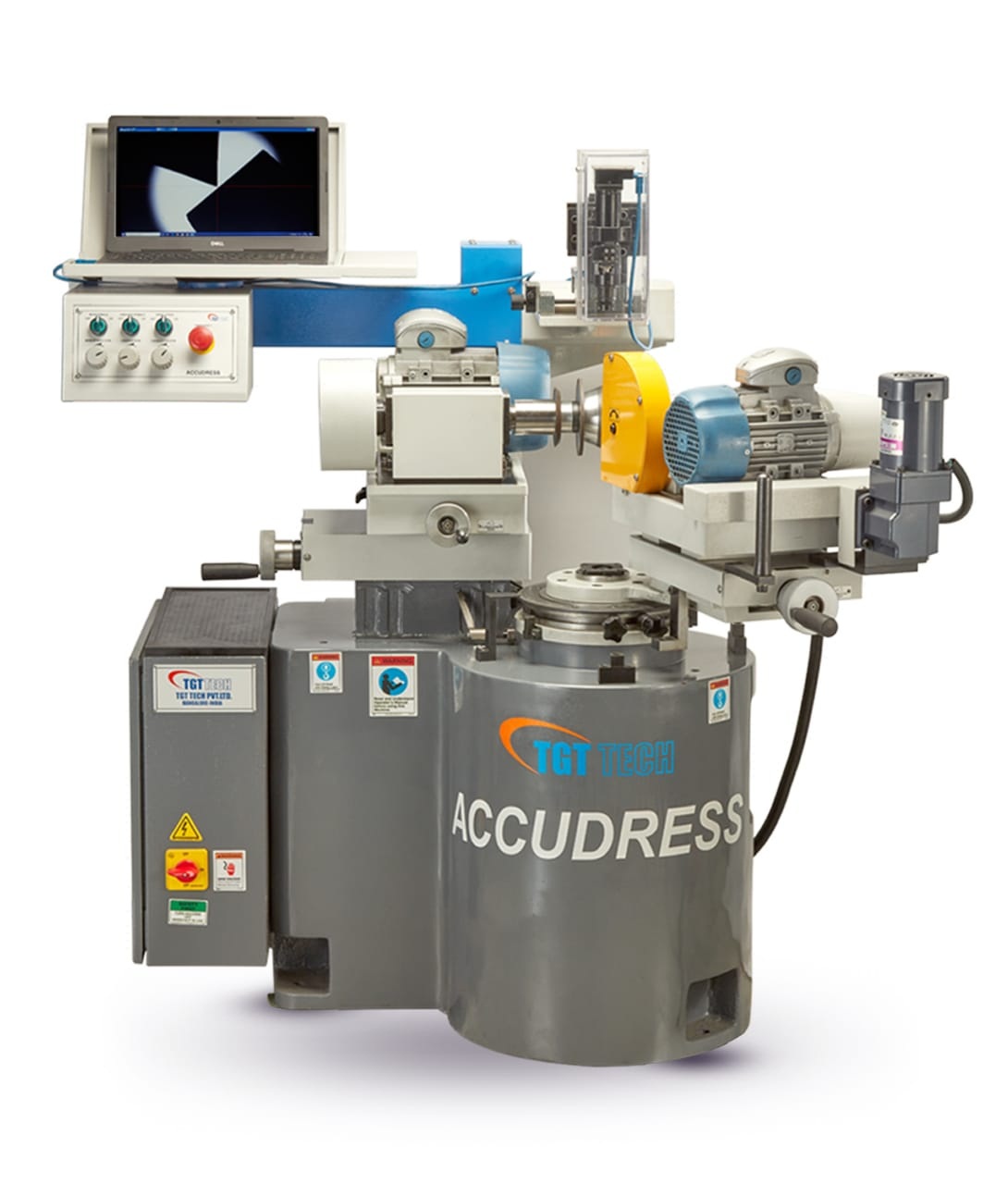

ACCUDRESS WHEEL DRESSING MACHINE WITH CAMERA SYSTEM

  • Base made of Cast Iron for better vibration dampening and rigidity
  • All slides and work head housing are made up of GG 25 graded cast iron. All castings are stress relieved and seasoned. Guide way seating areas are scraped accurately
  • Fitted with imported linear bearings (LM Guides) for effortless free movement and to achieve accuracy

Additional Benefits

  • Ground ball screws for all slides for precise positioning
  • Both wheel head and Work head spindles are driven by a fixed speed AC induction motor
  • Operating electrical Panel is mounted directly on the machine at a convenient place of operation
  • Fixed position orientation pin for 90 degree and cup wheel dressing for quick setup
  • Frequency drive for Dressing wheel to control the RPM
  • Special transparent dust collection chute to avoid dust falling on the bottom light source

KNOW MORE..



ACCUDRESS WHEEL DRESSING MACHINE WITH PROFILE PROJECTOR

  • Straight, angle and form wheel can be dressed
  • Quick position for 90° and Cupwheel dressing.
  • Projector head is dia400mm and 20X magnification optics

Additional Benefits

  • Concentricity of wheel can be achieved in all the wheels
  • Radius of 0.2 to 8mm can be done
  • Low in maintenance

KNOW MORE..
